Ironing & Embossing - Mostardini - Continua WS-3

On request

Basic Information

Brand	:	Mostardini
Model	:	Continua WS-3
Operating Voltage	:	440V
Year manufactured	:	2001

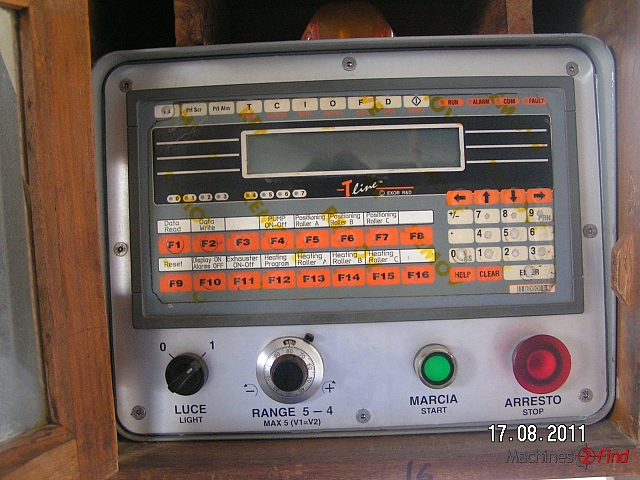

Description	:	Model : CONTINUA WS / 3 Rollers and Optional 4th Roller Available Working width : 1. Read more 800 Through-feed ironing and embossing machine, completely driven and programmable through PLC (Programmable Logic Controller), with working width at Customer’s choice, 70 or 90 tons of working pressure, equipped at Customer’s choice with: A) One Mirror Chromed Roller for ironing B) One Sandblast Chromed Roller for mat effect (at Customer’s choice) C) One Engraved Chromed Roller for embossing effect (at Customer’s choice) AND D) One further Fine Sandblast Available as Spare Roller totally predisposed to receive up until three or four rollers, all fitted on automatic rotating device, with fixed position of felt band at exit of leathers, complete of all accessories. Main features: • Ones or more operative rollers fitted on automatic revolver system allowing to choice the roller to be put into operation: the mirror chromed roller for ironing, or one of the other two or three rollers engraved for embossing and/or sandblasting; • All rollers are heated by electricity with separate control, programming and checking; • Speed change gear allowing to select the working speed continuously from 3 to 20 mt/1’; • PLC driving panel - directly assembled on the body of machine - for the control of all parameters: working speed, selected roller, temperature of each roller (with timer program for automatic starting) and hydraulic pressure, self-research of failures, etc.; • The main frequently parameters will be eventually record on files can be re-called at any time when necessary; • Possibility to work in “LOW PRESSURE MODE” to get a kiss effect on the leathers; • Centrifugal aspirator to remove from felt endless band the dust left by processed leathers; • Safety devices according to the European standards; • Technical characteristics in according to the Customer’s selected machine (see next page); Read Less
